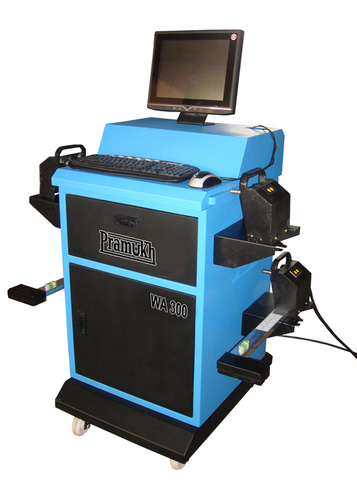

COMPUTERIZED WHEEL ALINGER
To build up a long and strong business relationship with our esteemed clients, we are engaged in manufacturing and supplying a quality range of Computerized Wheel Alinger. These are used for aligning various motor vehicle wheels in automobile service centers. The aligner is well equipped with a monitor, color printer, storage cabinet, disk drive and sensors. We can upgrade and modify the Computerized Wheel Alinger as per the clientâ€™s requirements.
Display 15" colour screen with high resolution graphics
Display resolution Unlimited reference Value input in degrees 1 minutes, degrees I fractions, mm 1 dicimals, mm 1 fractions, inches 1 decimals, inches I fraction
Wheel size range 10" -20"
MEASURING RANGE WITH ACCURACY
Total toe + 100 with + 100
Individual toe + 50 with + 50
Camber + 80 with + 80
Driving Axis Angle + 50 with + 50
Castor + 100 with + 100
Kingpin Inclination + 100 with + 100
Wheel Setback + 50 with + 50
Toe out on turns at 20" Steering Lock + 50 with + 50
Full Wheel Lock + 600 with + 100
Castor angle adjustment range + 100
Load capacity of Turntables 600 Kgs.
Load capacity of Sliding Support 6OOKgs.
Power supply 220V, 1 Phase
